NVIDIA
NetworkingNVIDIA Quantum-2 QM9700
The standard leaf and spine switch for 400Gb/s InfiniBand GPU fabrics.
- Ports
- 64x 400Gb/s NDR InfiniBand
- Connectors
- 32x OSFP cages
- Aggregate throughput
- 51.2Tb/s
// catalog / networking
Data center networking for AI clusters
400G InfiniBand and Ethernet switches, network adapters and DPUs from NVIDIA, Arista and Cisco. Add the models and port counts you need and we reply with an all-in price and a delivery date.
Brand
6 of 6 products
NVIDIA
NetworkingNVIDIA Spectrum-4 SN5600
High-radix Ethernet switch for AI fabrics built on RoCE rather than InfiniBand.
- Ports
- 64x 800GbE
- Connectors
- OSFP
- Aggregate throughput
- 51.2Tb/s
NVIDIA
NetworkingNVIDIA ConnectX-7 Adapter
Network adapter that attaches servers and GPUs to 400Gb/s fabrics, available for both InfiniBand and Ethernet.
- Max speed
- 400Gb/s
- Protocols
- NDR InfiniBand, 400GbE
- Host interface
- PCIe Gen5 x16
NVIDIA
NetworkingNVIDIA BlueField-3 DPU
A data processing unit that moves networking, storage and security services off the host processor and onto the adapter.
- Max speed
- 400Gb/s
- On-board processor
- 16x Arm Cortex-A78 cores
- On-board memory
- 32GB DDR5
Arista
NetworkingArista 7060DX5-64S
A 400G fixed switch for data-centre leaf and spine roles, running the same EOS software as the rest of an Arista estate.
- Ports
- 64x 400G QSFP-DD
- Aggregate throughput
- 25.6Tb/s
- Form factor
- 2U
Cisco
NetworkingCisco Nexus 9364D-GX2A
A 400G Nexus 9000 switch for spine and aggregation layers in NX-OS or ACI fabrics.
- Ports
- 64x 400G QSFP-DD
- Aggregate throughput
- 51.2Tb/s
- Form factor
- 2U
Before you order: Networking
The questions we ask before quoting. Answer them in the line notes and the first reply is usually the final one.
- InfiniBand or Ethernet is decided by the workload and by what the rest of the fabric already runs. Say which, or ask us to recommend.
- Optics and cables are separate lines. Give us the link distances and we add the right transceivers, DACs or AOCs.
- Airflow direction and power supply type are chosen at order time. Tell us how the rack is laid out.
- Switch software and support subscriptions are often separate items. We list them so the quote is complete.

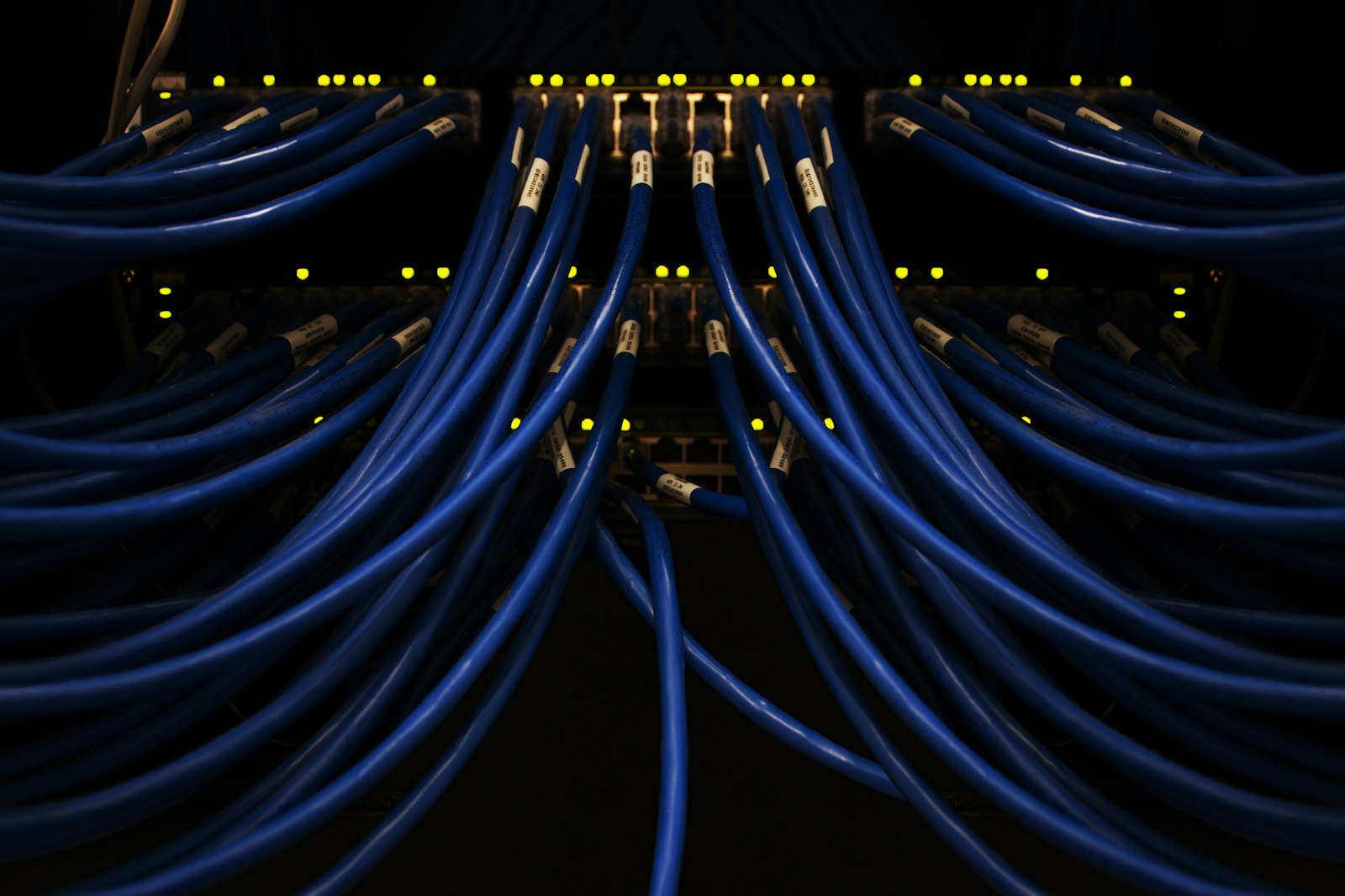

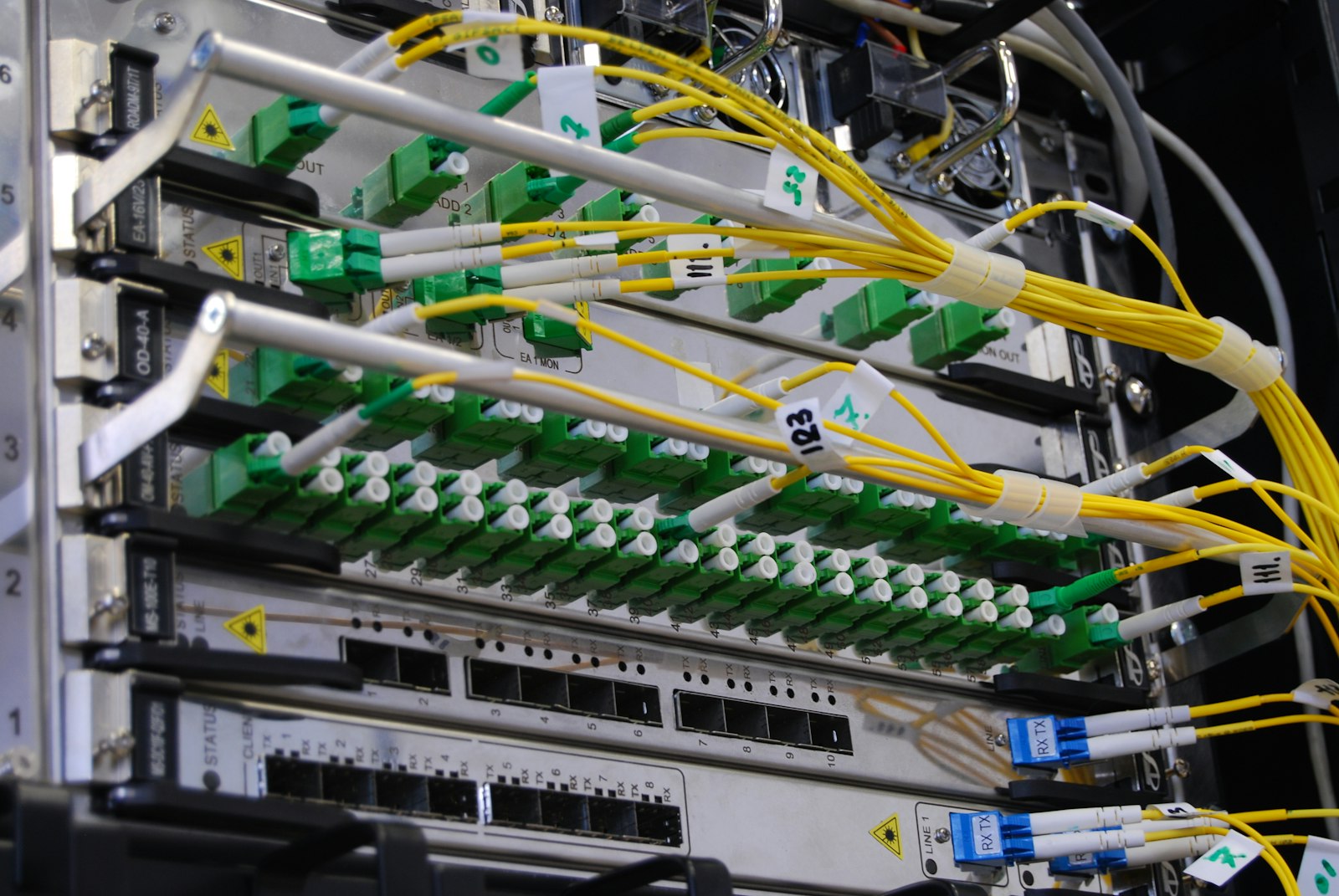

Specifications are indicative and confirmed on quote. Photos are representative of the hardware type, not the listed product. Product and brand names belong to their respective owners and are used for identification only.
